Use of soapUI client for consuming the JAX-WS web-services
In the earlier post I mentioned how to create web-services using JAX-WS(Java API). Below is the link given:-
In the above link I also mentioned the process of creating client program but suppose that i don't want to create client program then in that case we can use soapUI tool as a client. Now I will tell how to use soapUI in order to test JAX-WS web-service.
Steps to test JAX-WS web-service with soapUI Client :-
- Open soapUI, I am using 4.5.1 version of soapUI.
- Go to File menu and select New soapUI project
- Give the path of the wsdlfile, where we published our services during the creation of web-service using JAX-WS. The example is shown below:-
- Click on OK button.
- Now the soapUI project structure will be displayed as below:-
- Now double click on Request 1 inside getFactorial method in GenericMethodsImplPortBinding, it will display below screen:-
- The Generated request for the getFactorial method is like below, pass any number in the arg0 parameter like 9. It will display the response as below:-
Test Number - 1
- Soap Request for getFactorial method:-
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ser="http://services.jaxws.gaurav.com/">
<soapenv:Header/>
<soapenv:Body>
<ser:getFactorial>
<!--Optional:-->
<arg0>9</arg0>
</ser:getFactorial>
</soapenv:Body>
</soapenv:Envelope>
- Soap Response for getFactorial method:-
<S:Envelope xmlns:S="http://schemas.xmlsoap.org/soap/envelope/">
<S:Body>
<ns2:getFactorialResponse xmlns:ns2="http://services.jaxws.gaurav.com/">
<return>Factorial of given number 9 is 362880</return>
</ns2:getFactorialResponse>
</S:Body>
</S:Envelope>
Test Number - 2
- soap request for Negative scenario when sending string instead of number in the request argument:-
- Pass any string for the arg0 parameter like “Gaurav”, now the request which I am sending to get the response is available below:-
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ser="http://services.jaxws.gaurav.com/">
<soapenv:Header/>
<soapenv:Body>
<ser:getFactorial>
<!--Optional:-->
<arg0>Gaurav</arg0>
</ser:getFactorial>
</soapenv:Body>
</soapenv:Envelope>
- Response for the Negative scenario is available below:-
<S:Envelope xmlns:S="http://schemas.xmlsoap.org/soap/envelope/">
<S:Body>
<ns2:getFactorialResponse xmlns:ns2="http://services.jaxws.gaurav.com/">
<return>Not a Valid Number</return>
</ns2:getFactorialResponse>
</S:Body>
</S:Envelope>
- Similarly we can do the testing for getOddAndEven method request and getPrimeNumber method request. I am proceeding with the both methods testing. Below are soap request available for the requests and their corresponding response :-
Test Number - 3
- soap Request Test for Even number:-
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ser="http://services.jaxws.gaurav.com/">
<soapenv:Header/>
<soapenv:Body>
<ser:getOddAndEven>
<!--Optional:-->
<arg0>18</arg0>
</ser:getOddAndEven>
</soapenv:Body>
</soapenv:Envelope>
- Response for Even number Request :-
<S:Envelope xmlns:S="http://schemas.xmlsoap.org/soap/envelope/">
<S:Body>
<ns2:getOddAndEvenResponse xmlns:ns2="http://services.jaxws.gaurav.com/">
<return>18 is even number</return>
</ns2:getOddAndEvenResponse>
</S:Body>
</S:Envelope>
Test Number - 4

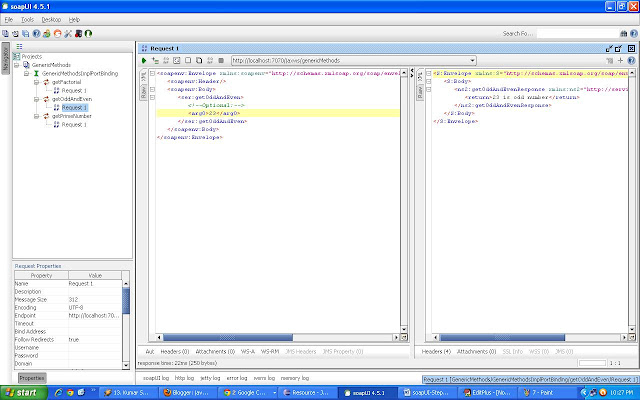

- soap Request Test for Odd number:-
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ser="http://services.jaxws.gaurav.com/">
<soapenv:Header/>
<soapenv:Body>
<ser:getOddAndEven>
<!--Optional:-->
<arg0>23</arg0>
</ser:getOddAndEven>
</soapenv:Body>
</soapenv:Envelope>
- Response for Odd number Request:-
<S:Envelope xmlns:S="http://schemas.xmlsoap.org/soap/envelope/">
<S:Body>
<ns2:getOddAndEvenResponse xmlns:ns2="http://services.jaxws.gaurav.com/">
<return>23 is odd number</return>
</ns2:getOddAndEvenResponse>
</S:Body>
</S:Envelope>
Test Number - 5
- soap Request Test for Negative scenario’s by passing string instead of number:-
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ser="http://services.jaxws.gaurav.com/">
<soapenv:Header/>
<soapenv:Body>
<ser:getOddAndEven>
<!--Optional:-->
<arg0>Kumar Gaurav</arg0>
</ser:getOddAndEven>
</soapenv:Body>
</soapenv:Envelope>
- soap Response for Negative scenario’s when passed string instead of number as in above request:-
<S:Envelope xmlns:S="http://schemas.xmlsoap.org/soap/envelope/">
<S:Body>
<ns2:getOddAndEvenResponse xmlns:ns2="http://services.jaxws.gaurav.com/">
<return>Not a Valid Number</return>
</ns2:getOddAndEvenResponse>
</S:Body>
</S:Envelope>
Test Number - 6
- soap Request Test for getPrimeNumber method(positive scenario’s):-
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ser="http://services.jaxws.gaurav.com/">
<soapenv:Header/>
<soapenv:Body>
<ser:getPrimeNumber>
<!--Optional:-->
<arg0>53</arg0>
</ser:getPrimeNumber>
</soapenv:Body>
</soapenv:Envelope>
- soap Response Test for getPrimeNumber method(positive scenario’s):-
<S:Envelope xmlns:S="http://schemas.xmlsoap.org/soap/envelope/">
<S:Body>
<ns2:getPrimeNumberResponse xmlns:ns2="http://services.jaxws.gaurav.com/">
<return>53 is Prime Number</return>
</ns2:getPrimeNumberResponse>
</S:Body>
</S:Envelope>
Test Number - 7
- soap Request Test for getPrimeNumber method(Negative scenario’s):-
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ser="http://services.jaxws.gaurav.com/">
<soapenv:Header/>
<soapenv:Body>
<ser:getPrimeNumber>
<!--Optional:-->
<arg0>99</arg0>
</ser:getPrimeNumber>
</soapenv:Body>
</soapenv:Envelope>
- soap Response Test for getPrimeNumber method(Negative scenario’s):-
<S:Envelope xmlns:S="http://schemas.xmlsoap.org/soap/envelope/">
<S:Body>
<ns2:getPrimeNumberResponse xmlns:ns2="http://services.jaxws.gaurav.com/">
<return>99 is not Prime Number</return>
</ns2:getPrimeNumberResponse>
</S:Body>
</S:Envelope>
Test Number - 8
- soap Request Test for getPrimeNumber method(Negative scenario’s) by passing string instead of number:-
<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ser="http://services.jaxws.gaurav.com/">
<soapenv:Header/>
<soapenv:Body>
<ser:getPrimeNumber>
<!--Optional:-->
<arg0>Gaurav Kumar</arg0>
</ser:getPrimeNumber>
</soapenv:Body>
</soapenv:Envelope>
- soap Response Test for getPrimeNumber method(Negative scenario’s) when passed string instead of number:-
<S:Envelope xmlns:S="http://schemas.xmlsoap.org/soap/envelope/">
<S:Body>
<ns2:getPrimeNumberResponse xmlns:ns2="http://services.jaxws.gaurav.com/">
<return>Not a Valid Number</return>
</ns2:getPrimeNumberResponse>
</S:Body>
</S:Envelope>
Finally, This is the way to create soapUI test client for testing or consuming the JAX-WS webservices.
